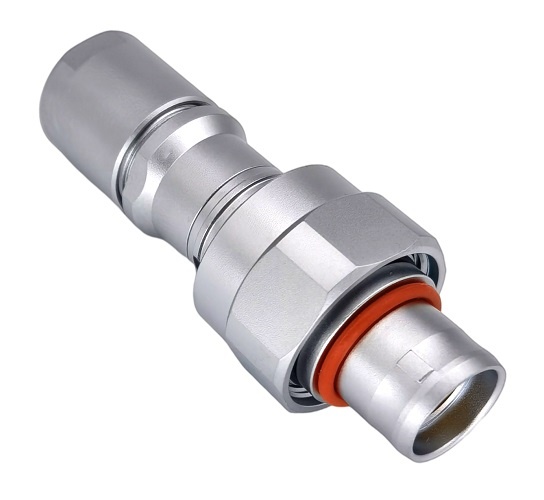

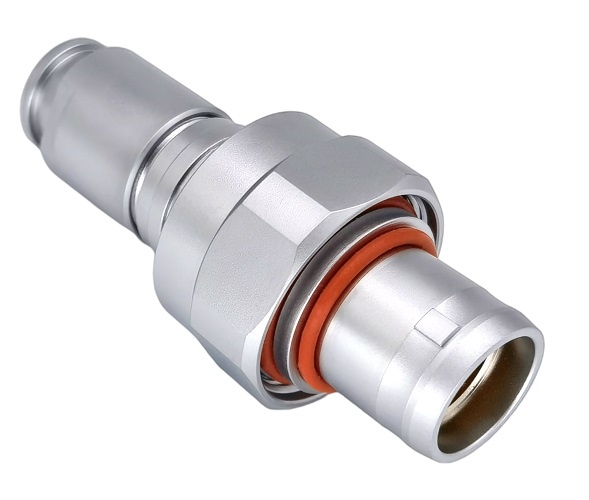

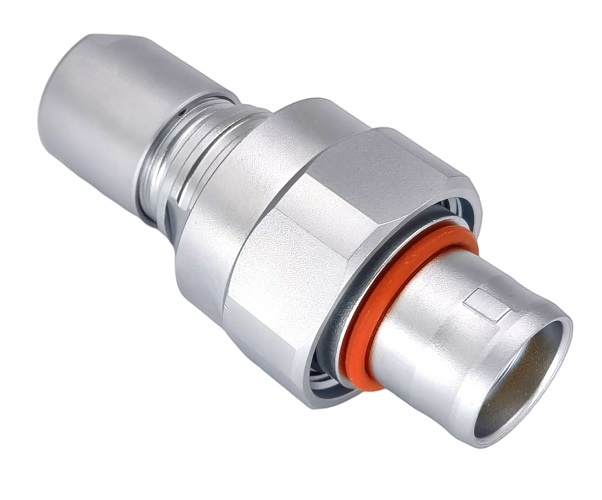

High Pressure Connector W Series

  • Product No.:2022102616640
  • Shell Materiail:Brass
  • Insulator:PPS
  • Contact Type:Solder
  • IP Rating:67
  • Online Inquiry
High Pressure Connector W Series Series connectors have been developed for utilisation where protection must be guaranteed under high pressures of liquids.The push-pull latching system has been replaced by a screw coupling system with watertightness maintained by compression of an O-ring according to the triangular shaped cavity principle. There are multiple application possibilities ranging from nuclear physics to the petroleum industry. After cable assembly, the rear part must be covered by an adhesive heatshrink boot in order to ensure watertightness on the cable side. W series connectors provide the following main features: – multipole types from 2 to 16 contacts – fibre optic or mixed types available upon request – solder – keying system («G» key standard) for connector alignment – multiple key options to avoid cross mating of similar connectors – 360° screening for full EMC shielding – rugged housing for extreme working conditions
