Products >> Metal Push-Pull Connectors >> IP67 IP68 Metal Push-Pull Connectors

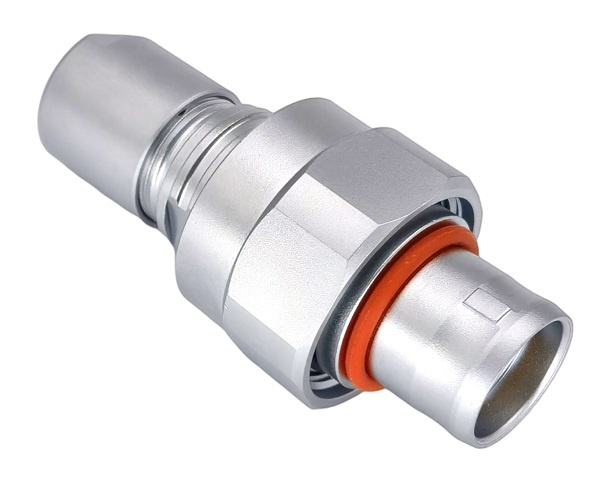

FVG EVG Straight Plug 0W 1W 2W
- Product No.：FVG.2W.310.CLAC80
- Newlyconnector Part Number：TVG.2W.310.CLAC80
- Manufacturer：Newlyconnector
- Standard Lead Time：1 Week
FVG EVG Straight Plug 0W 1W 2W
FVG.2W.310.CLAC80
FVG.2W.310.CLAC80
| Detailed Description | 10 Position Circular Connector Plug, Male Pins Solder Cup |
| Product Attributes | |
| Type | Description |
| Series | 2W |
| Package | Bags,Box,Bulk |
| Connector Type | Plug, Male Pins |
| Number of Positions | 10 |
| Shell Size - Insert | 16mm |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | |
| Termination | Solder Cup |
| Fastening Type | Push-Pull |
| Primary Material | Metal |
| Shell Material | Brass |
| Shell Finish | Chrome |
| Contact Finish - Mating | Gold |
| Color | Silver |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Current Rating (Amps) | 8A |
| Insert Material | Polyphenylenesulphide (PPS) |

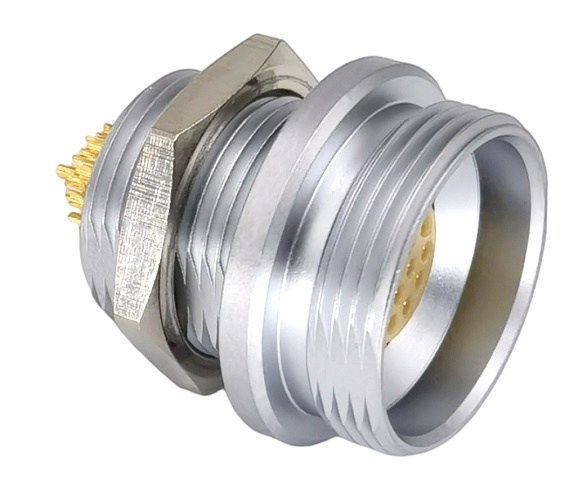

| Mating products | EVG.2W.310.CLL |
Previous Product：Screw Connector FVG EVG 1W 10Pin
Next Product：FVG High Pressure Connector 0W 1W Series
